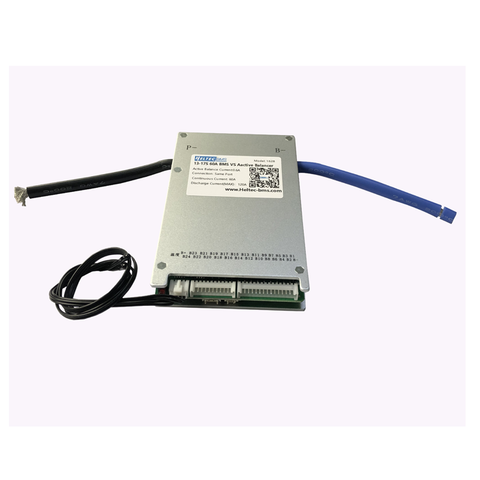

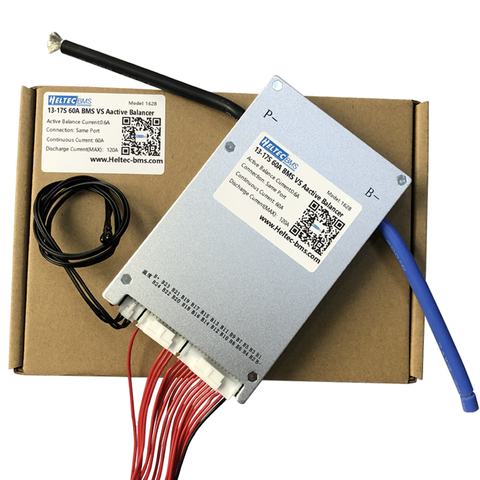

Active Equalizer balancer vs bms Bluetooth Smart BMS 13S 14S 15S 16S 17S -20S 60A 120A RS485 APP Lifepo4 li-ion 48V 52V 60V

Active Equalizer balancer vs bms Bluetooth Smart BMS 13S 14S 15S 16S 17S -20S 60A 120A RS485 APP Lifepo4 li-ion 48V 52V 60V

$68.00

Feature String(Lifepo4)：13-17SString(Li-ion) ：13-17SOutlet method：Same PortCell voltage：1-5VVoltage acquisition accuracy：±5mVContinuous discharge current：60ADischarge current(MAX)：120AEquilibrium method：Active BalanceEquilibrium current：0.6AMain circuit conduction internal resistance：1.3mΩOvercharge protection voltage：2.5-4.25V adjustableOvercharge release voltage：2.5-4.25V adjustableCharging overcurrent protection (adjustable)：10-60ACharging overcurrent release time：2-120S adjustableOver discharge protection voltage：2.5-4.25V adjustableOver discharge recovery voltage：2.5-4.25V adjustableDischarge overcurrent protection (adjustable)：10-60ADischarge overcurrent release time 2-120S adjustableNumber of temperature tests：3Short...

Current

Feature

String(Lifepo4)：13-17S

String(Li-ion) ：13-17S

Outlet method：Same Port

Cell voltage：1-5V

Voltage acquisition accuracy：±5mV

Continuous discharge current：60A

Discharge current(MAX)：120A

Equilibrium method：Active Balance

Equilibrium current：0.6A

Main circuit conduction internal resistance：1.3mΩ

Overcharge protection voltage：2.5-4.25V adjustable

Overcharge release voltage：2.5-4.25V adjustable

Charging overcurrent protection (adjustable)：10-60A

Charging overcurrent release time：2-120S adjustable

Over discharge protection voltage：2.5-4.25V adjustable

Over discharge recovery voltage：2.5-4.25V adjustable

Discharge overcurrent protection (adjustable)：10-60A

Discharge overcurrent release time 2-120S adjustable

Number of temperature tests：3

Short circuit protection：Yes

Coulomb counter ：Yes

Bluetooth function：Support IOS/Android

RS485：Custom made
