4S 80A 3.2V Same Port

Charging protection voltage: 3.75V

Charge release voltage: 3.6V

Balanced opening voltage 3.55V

Discharge protection voltage: 2.1V

Discharge release voltage: 2.5V

Balance current: 95 mA

Continuous discharge current: 80A

Continuous charging current: 80A

Current limit protection: 400A

Specification size: 72*55*8mm

It is suitable for motors within 800W, often used in marine propellers, and low-power energy storage around 1000W.

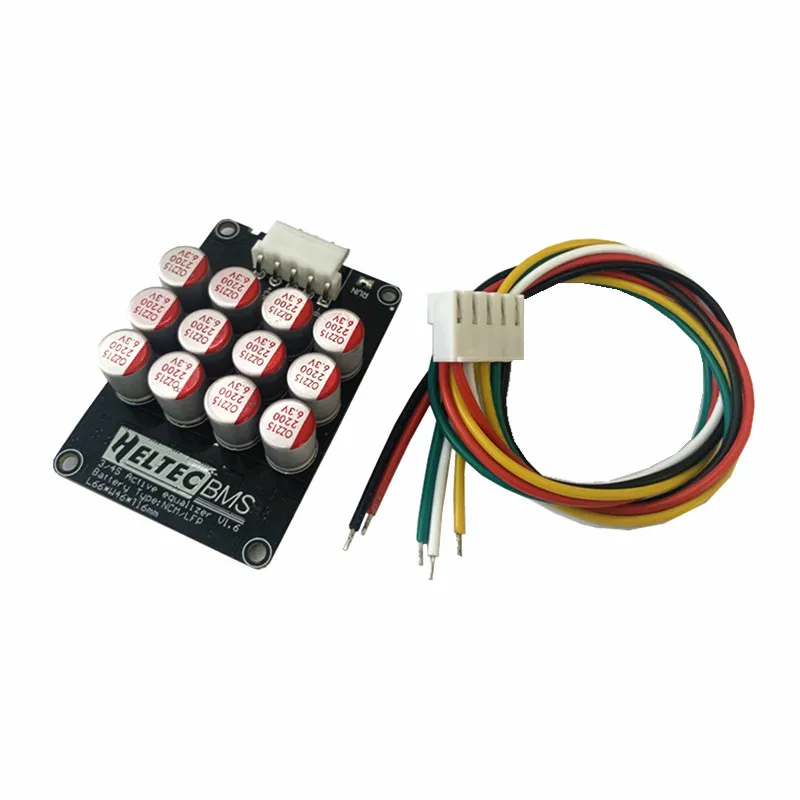

4S 5A Active Balancer Feture

Working voltage: 2.7V-4.5V

Suitable for ternary lithium, lithium iron phosphate, lithium titanate.

Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB

Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!

The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.

With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.
