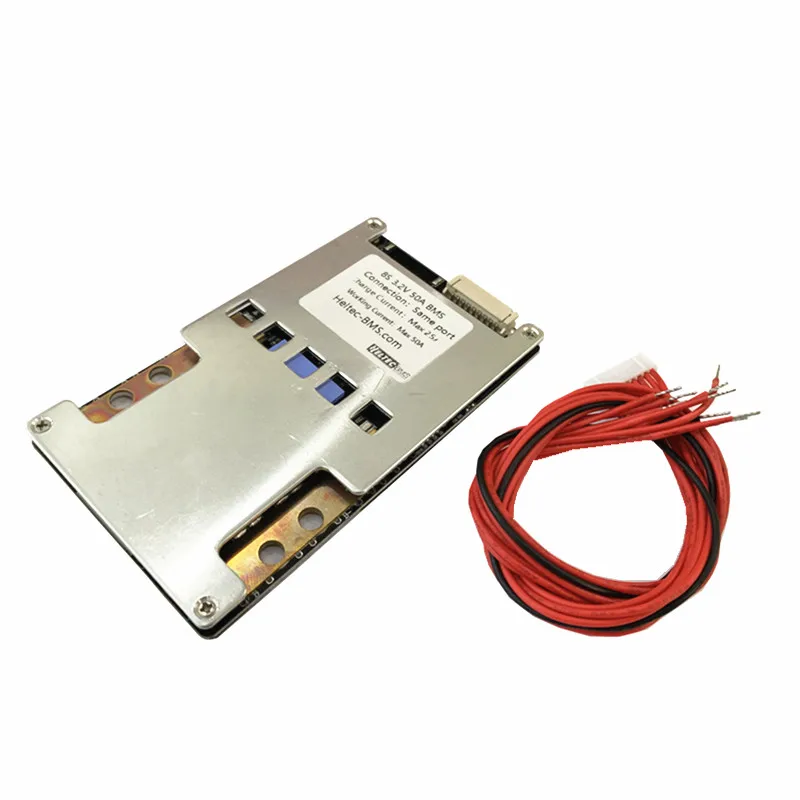

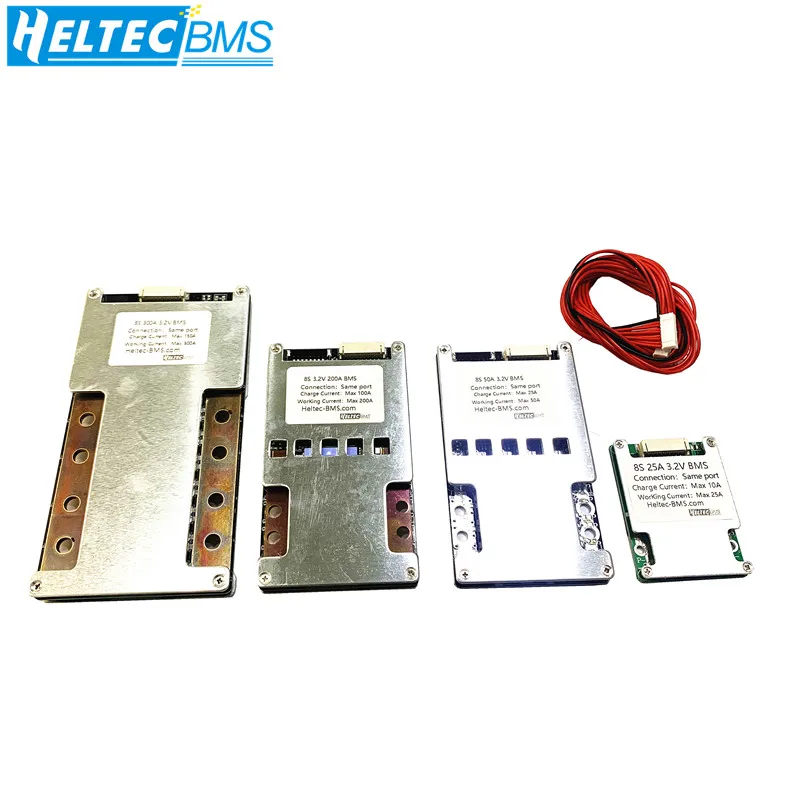

Wholesale 29V 25.6V BMS 8S 25A 30A 50A 60A 80A 120A 150A 200A 18650 BMS Balance Board for 3.2V LifePO4 Battery protection board
$29.99
8S 25A 3.2V Same Port Charging type: same portCharging protection voltage: 3.75VDischarge protection voltage: 2.2VCharge release voltage: 3.55VDischarge release voltage: 2.7VBalance voltage 3.5VBalance current: 83MACharging current: 15ALong-term continuous overcurrent value: 25AInstantaneous current limit value: 100A/100msShort circuit protection: load short circuitCharging low temperature/high temperature protection: -7℃/55℃Discharge high temperature protection: 75℃Dimensions: 63×48×8MMWeight:...
8S 25A 3.2V Same Port
Charging type: same port
Charging protection voltage: 3.75V
Discharge protection voltage: 2.2V
Charge release voltage: 3.55V
Discharge release voltage: 2.7V
Balance voltage 3.5V
Balance current: 83MA
Charging current: 15A
Long-term continuous overcurrent value: 25A
Instantaneous current limit value: 100A/100ms
Short circuit protection: load short circuit
Charging low temperature/high temperature protection: -7℃/55℃
Discharge high temperature protection: 75℃
Dimensions: 63×48×8MM
Weight: 47g
Imported high-power ultra-low internal resistance MOS tube
Application: 24V/500W internal motor and low-power energy storage, commonly used in low-speed wheelchair vehicles, low-power marine propellers, and low-power lawn mowers
8S 50A 3.2V Same Port
Size: 72×55×8
Overcharge protection : 3.75v
Overcharge release voltage: 3.6V
Balanced turn-on voltage: 3.55V
Discharge protection voltage: 2.1V
Over-discharge release voltage: 2.5V
Abnormal high voltage protection
Temperature protection optional
Maximum continuous current : 50A
Discharge over current protection : 250A
Load short circuit protection
Balance current : 67 mA
Charging recovery
Application:
Applicable to all kinds of common customized high and medium power lithium batteries
8S 80A 3.2V Same Port
Charging type: same port
Charging protection voltage: 3.75V
Discharge protection voltage: 2.2V
Charge release voltage: 3.55V
Discharge release voltage: 2.7V
Balance voltage 3.5V
Balance current: 83MA
Charging current: 50A
Long-term continuous overcurrent value: 80A
Instantaneous current limit value: 450A/100ms
Short circuit protection: load short circuit
Charging low temperature/high temperature protection: -7℃/55℃
Discharge high temperature protection: 75℃
Dimensions: 115×66×8MM
Weight: 89g
Imported high-power ultra-low internal resistance MOS tube/0.7 milliohm
Application: 24V/1200W motor and low-power energy storage

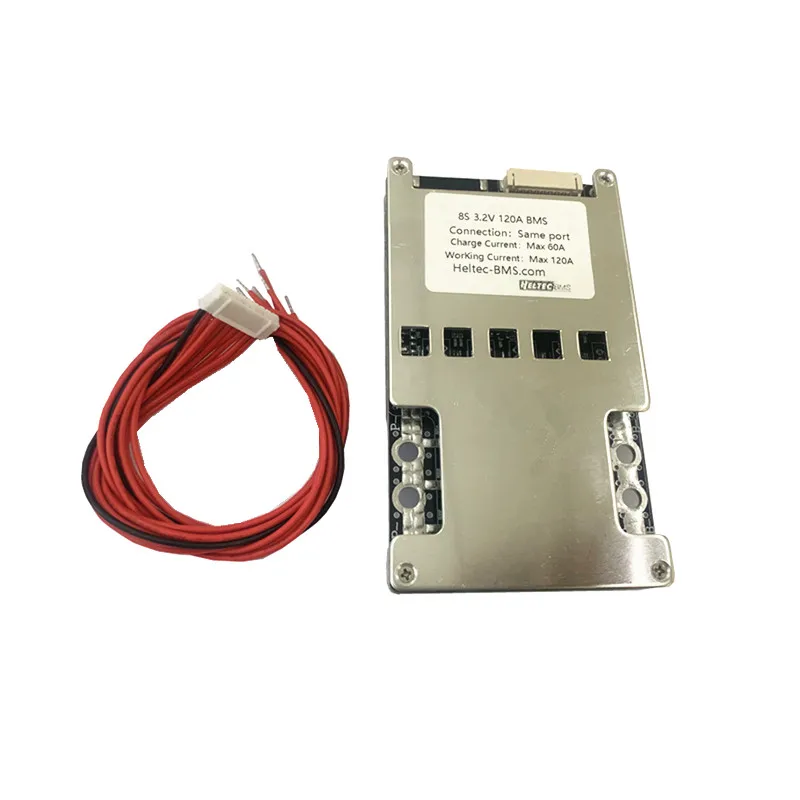

8S 120A 3.2V Same Port
Charging type: same port
Charging protection voltage: 3.75V
Discharge protection voltage: 2.2V
Charge release voltage: 3.55V
Discharge release voltage: 2.7V
Balance voltage 3.5V
Balance current: 83MA
Charging current: 50A
Long-term continuous overcurrent value: 80A
Instantaneous current limit value: 450A/100ms
Short circuit protection: load short circuit
Charging low temperature/high temperature protection: -7℃/55℃
Discharge high temperature protection: 75℃
Dimensions: 115×66×14MM
Weight: 142g
Imported high-power ultra-low internal resistance MOS tube/1.1 milliohms
Application: 24V/2400W motor and low-power energy storage
8S 150A 3.2V Same Port
Charging type: same port
Charging protection voltage: 3.75V
Discharge protection voltage: 2.2V
Charge release voltage: 3.55V
Discharge release voltage: 2.7V
Balance voltage 3.5V
Balance current: 83MA
Charging current: 50A
Long-term continuous overcurrent value: 80A
Instantaneous current limit value: 450A/100ms
Short circuit protection: load short circuit
Charging low temperature/high temperature protection: -7℃/55℃
Discharge high temperature protection: 75℃
Dimensions: 115×66×14MM
Weight: 142g
Imported high-power ultra-low internal resistance MOS tube/0.7 milliohm
Application: 24V/2800W motor and high-power energy storage
8S 180A 3.2V Same Port
Charging type: same port
Charging protection voltage: 3.75V
Discharge protection voltage: 2.2V
Charge release voltage: 3.55V
Discharge release voltage: 2.7V
Balance voltage 3.5V
Balance current: 83MA
Charging current: 50A
Long-term continuous overcurrent value: 80A
Instantaneous current limit value: 650A/100ms
Short circuit protection: load short circuit
Charging low temperature/high temperature protection: -7℃/55℃
Discharge high temperature protection: 75℃
Dimensions: 150×80×14MM
Weight: 236g
Imported high-power ultra-low internal resistance MOS tube/0.7 milliohm
Application: 24V/3000W motor and high-power energy storage
8S 200A 3.2V Same Port
Charging type: same port
Charging protection voltage: 3.75V
Discharge protection voltage: 2.2V
Charge release voltage: 3.55V
Discharge release voltage: 2.7V
Balance voltage 3.5V
Balance current: 83MA
Charging current: 50A
Long-term continuous overcurrent value: 80A
Instantaneous current limit value: 650A/100ms
Short circuit protection: load short circuit
Charging low temperature/high temperature protection: -7℃/55℃
Discharge high temperature protection: 75℃
Dimensions: 163×82×14MM
Weight: 245g
Imported high-power ultra-low internal resistance MOS tube/0.7 milliohm
Application: 24V/3500W motor and high-power energy storage
8S 250A 3.2V Same Port
Charge protection voltage: 3.75V
Charge protection release voltage: 3.6V
Discharge protection voltage: 2.1V
Discharge release voltage 2.5V
Balanced voltage: 3.55V
Balanced current: 83MA
Continuous overcurrent: 250A
Current limit protection: 1200A
Connection:Same Port
Short circuit protection: load short circuit protection
Size: 150*80*14MM
Commonly used: high-power inverters around 6000W, solar energy storage, 24V car startup, etc.
