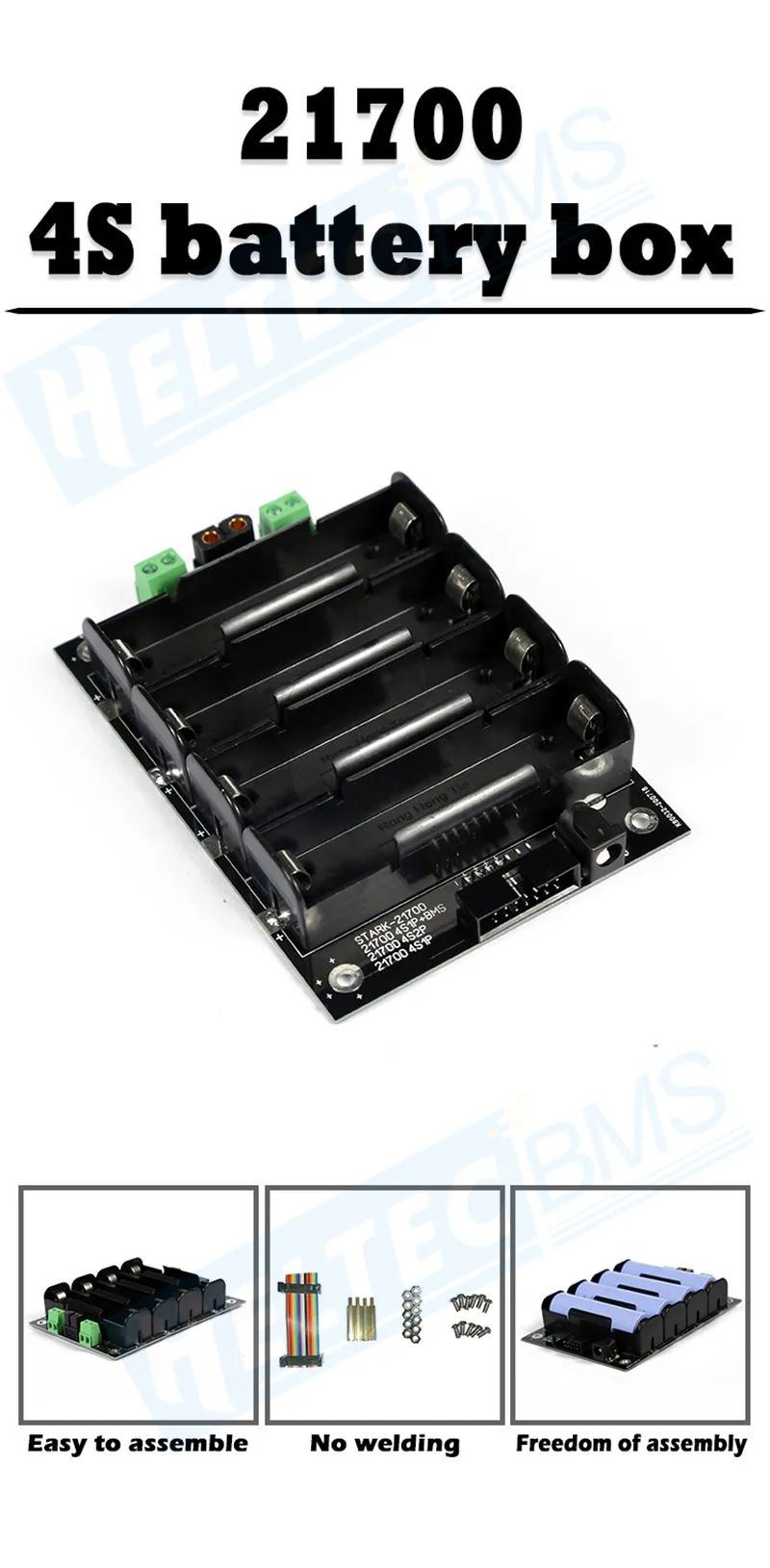

Features:

The installation is simple, only the battery is required, no welding is required.

Excellent structure, helps to dissipate heat during battery use
Comes with insurance design, safe to use

The protection board is powerful, reducing worries, flushing the same mouth

Can be stacked in multiple layers

M4 copper pillar conductive

Simple and fast assembly, no welding required

Size：

4S1P：12.5*8.8*2.5cm 66g

4S2P：12.5*8.8*4.5cm 98g

4S1P 60A：12.5*8.8*2.5cm 83g

4S1P 120A：12.5*8.8*2.5cm 98g

Capacity:Take the 5000mah 21700 battery as an example, 1P=5AH, 2P=10AH, 3P=15AH, 4P:20AH

Voltage :

1s full 4.2v, after discharge 2.9v

3s full 12.6v, after discharge 8.7v

4s full 16.8v, after discharge 11.6v

5s fully charged with 21v, discharged at 14.5v

6s fully charged 25.2v, discharged 17.4v

7s fully charged 29.4v, discharged 20.3v

13s fully charged 54.6v, discharged 37.7v

14s fully charged 71.4v, discharged 49.3v

Current:

The average instantaneous maximum of each layer is 20a, and it is recommended to be less than 10a for a long time (the actual current is determined by the battery performance)
Electrical parameters and precautions:

Electrical parameters and precautions:

It is best to choose the protection board when placing the order to avoid overcharge, over discharge and voltage imbalance during use. It is best to choose our dedicated charger. If other chargers are used, you need to choose a DC connector. , It is recommended that each layer does not exceed 1a charging current

Instructions：

You can install the battery directly after receiving it. The direction and polarity of the battery installation are subject to the symbols on the circuit board

After installing the battery, the direction of the notch is the same, and then screw on the copper pillar,
After the copper pillar is installed, confirm that there is no problem, you can install the cable, and you can use it after the cable is connected.

Note: If there is no protection board layer, the output terminal will have no voltage, because the protection board is connected in series in the circuit. If there is no protection board, the output is open.
