Product advantages:

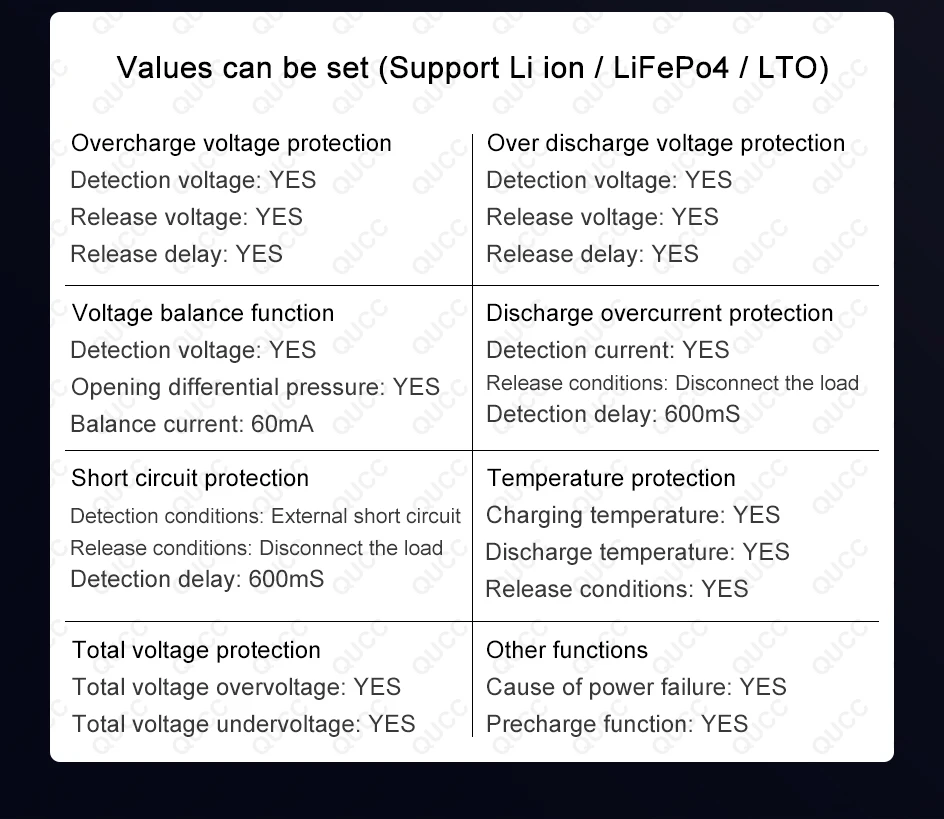

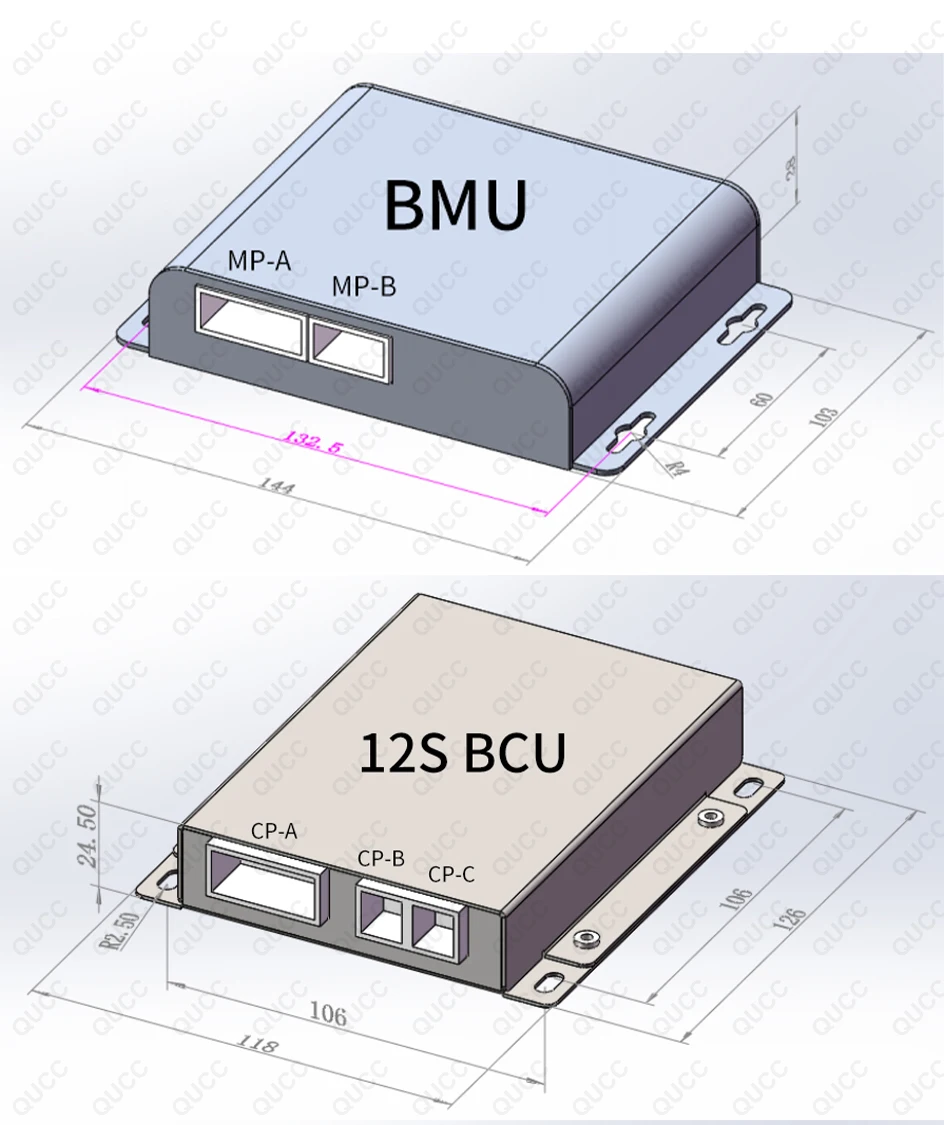

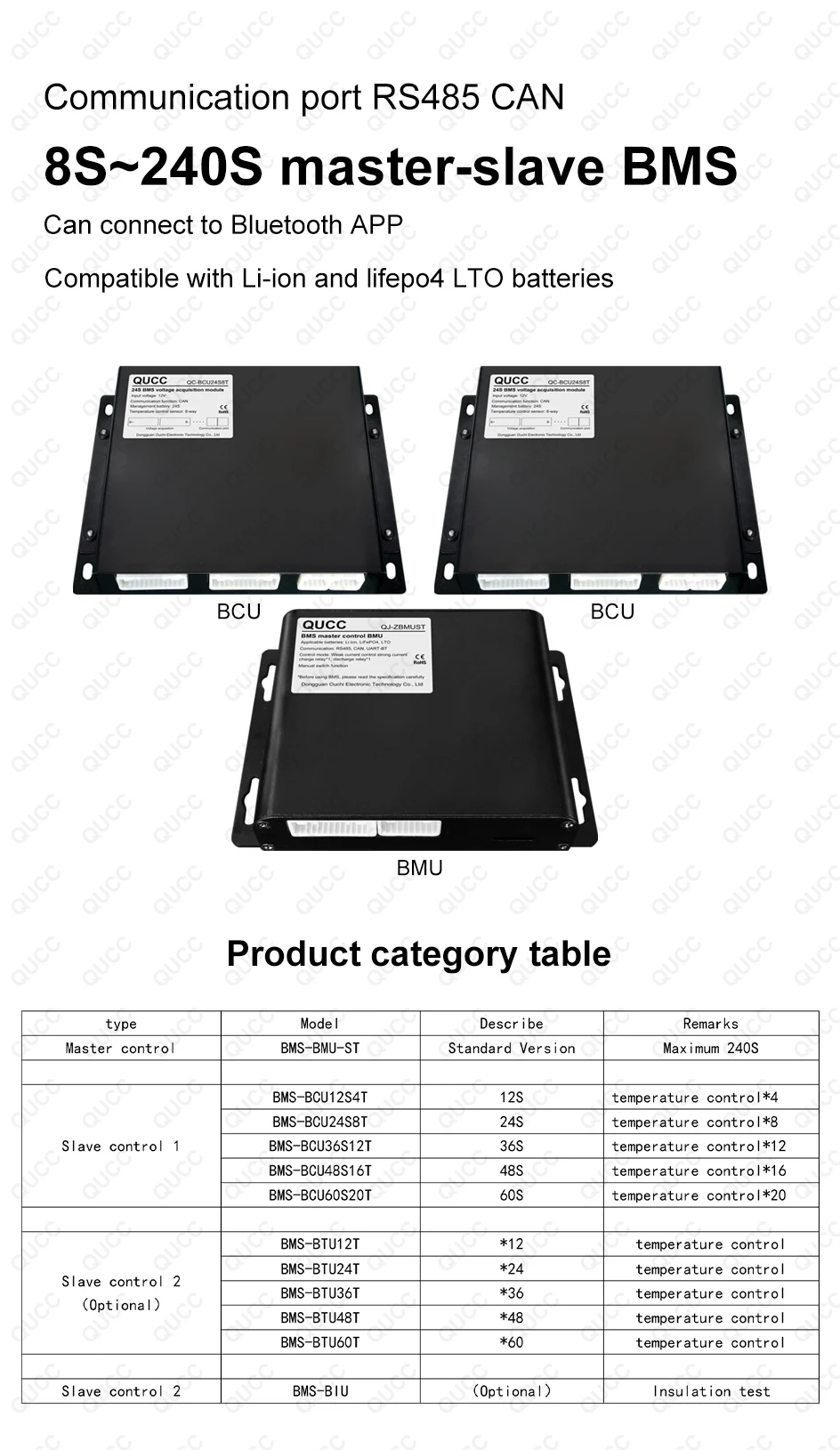

Main control module: BMU main control module

Slave control collection unit:

BCU voltage and temperature collection balance module.

BTU temperature collection expansion module.

BIU insulation detection module.

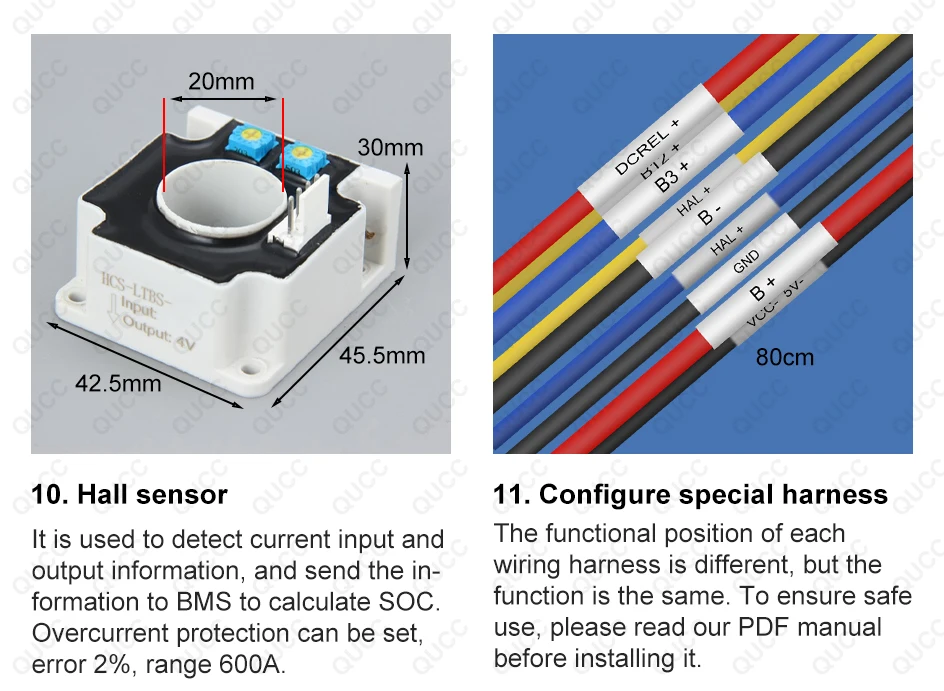

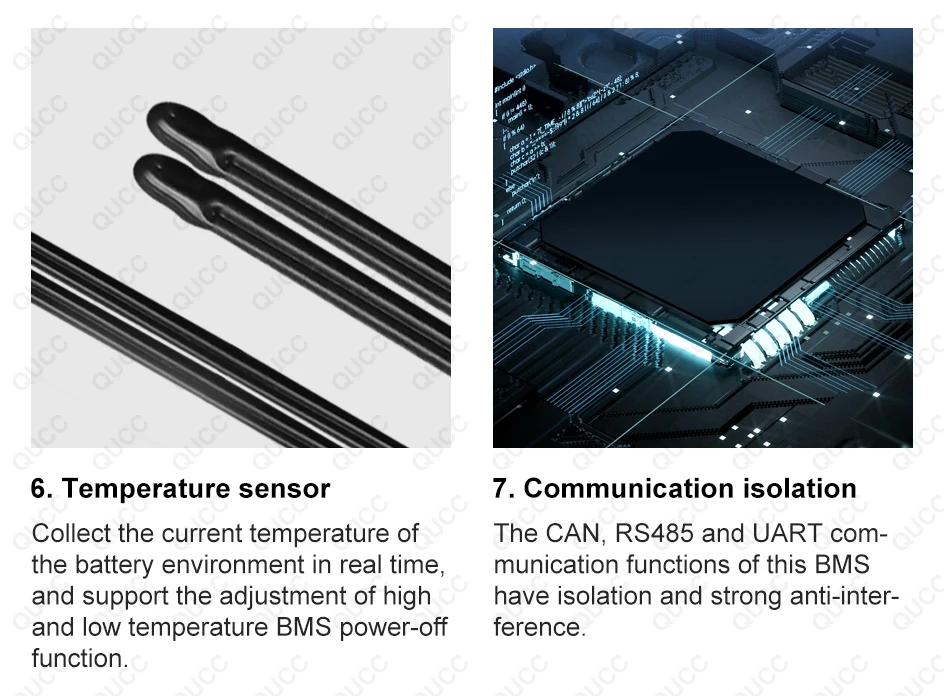

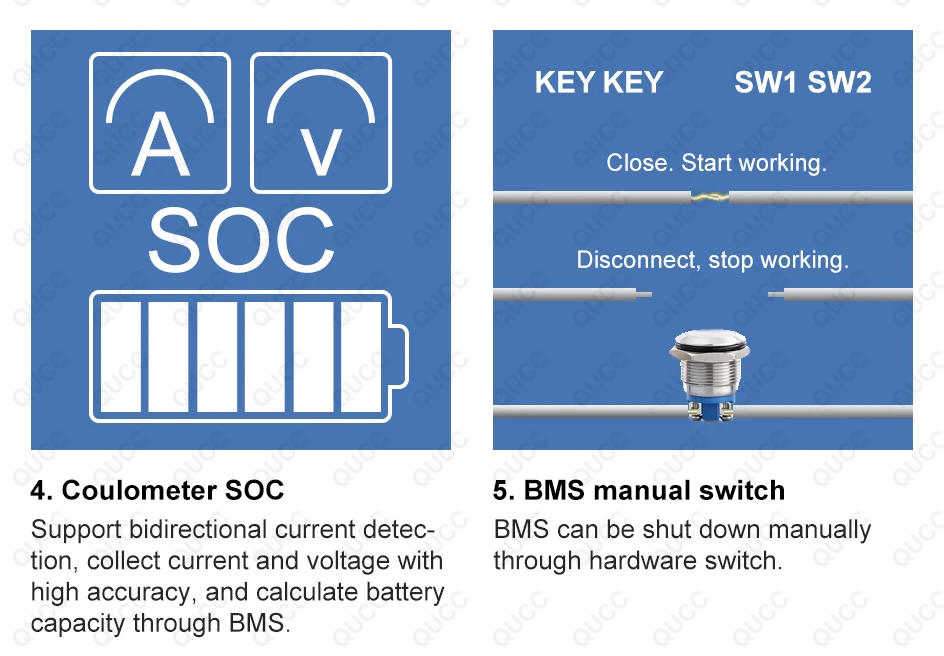

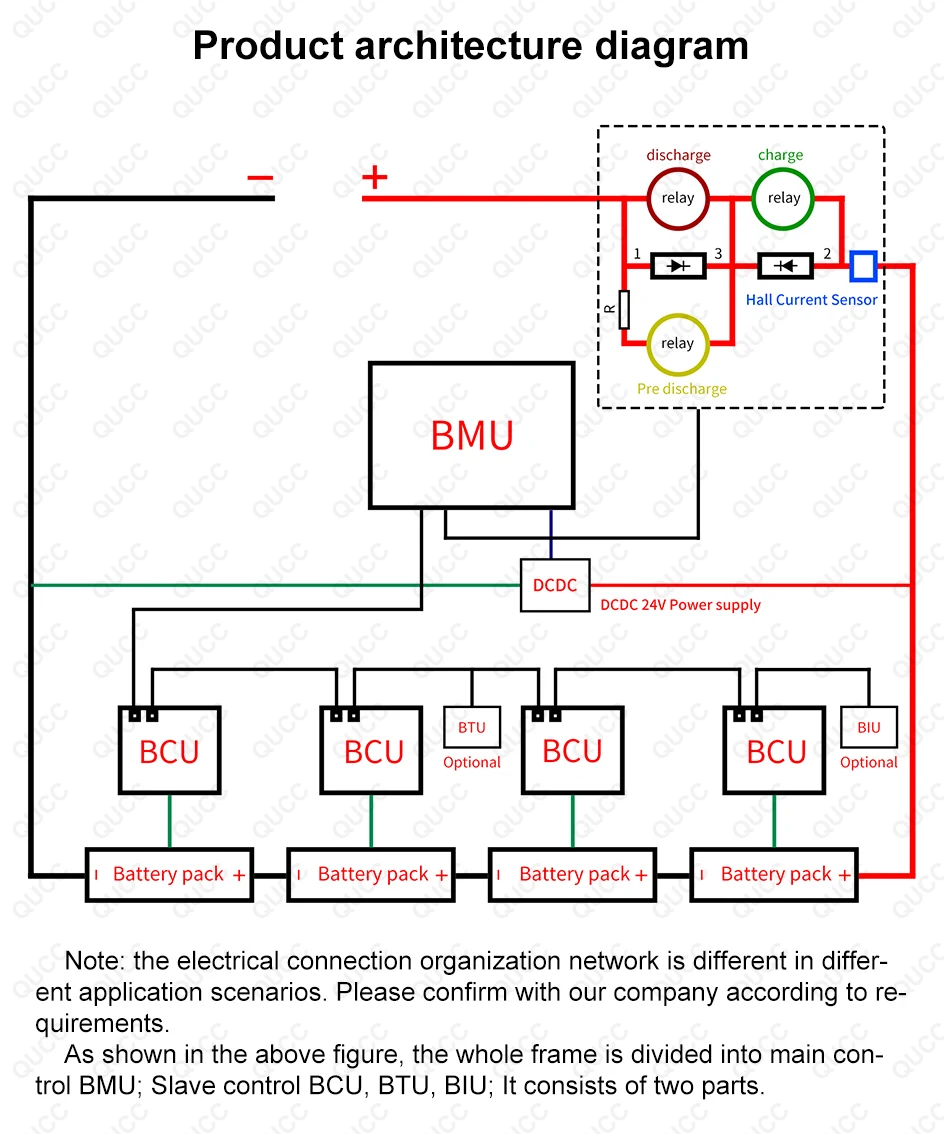

BMU: Receive the battery information (voltage and temperature) collected by the slave control module through internal CAN BUS, then perform logic and information statistical operation, drive the relay to realize battery charge and discharge protection, balance the battery, CAN and external others (UART/ RS485/CAN).

BCU: Realize a single battery voltage collection and NTC temperature control, then report current battery voltage, temperature and other states to BMU main control module through internal CAN BUS. BCU has a smart battery balancing function at the same time.

BTU: For some special applications manufacturers need more temperature detection channels.

BTU is an extended temperature detection module. One BTU supports up to 60 NTC temperature acquisition channels and reports temperature value to BMU through internal CAN. (Note: non-essential functions)

BIU: It realizes insulation detection function of battery pack B+B box and reports insulation detection data to BMU through the internal CAN.

*BMU: Control relay and BCU module need 20V~80V power supply. Use a DCDC power supply if your battery voltage is above this range. 24V is recommended.

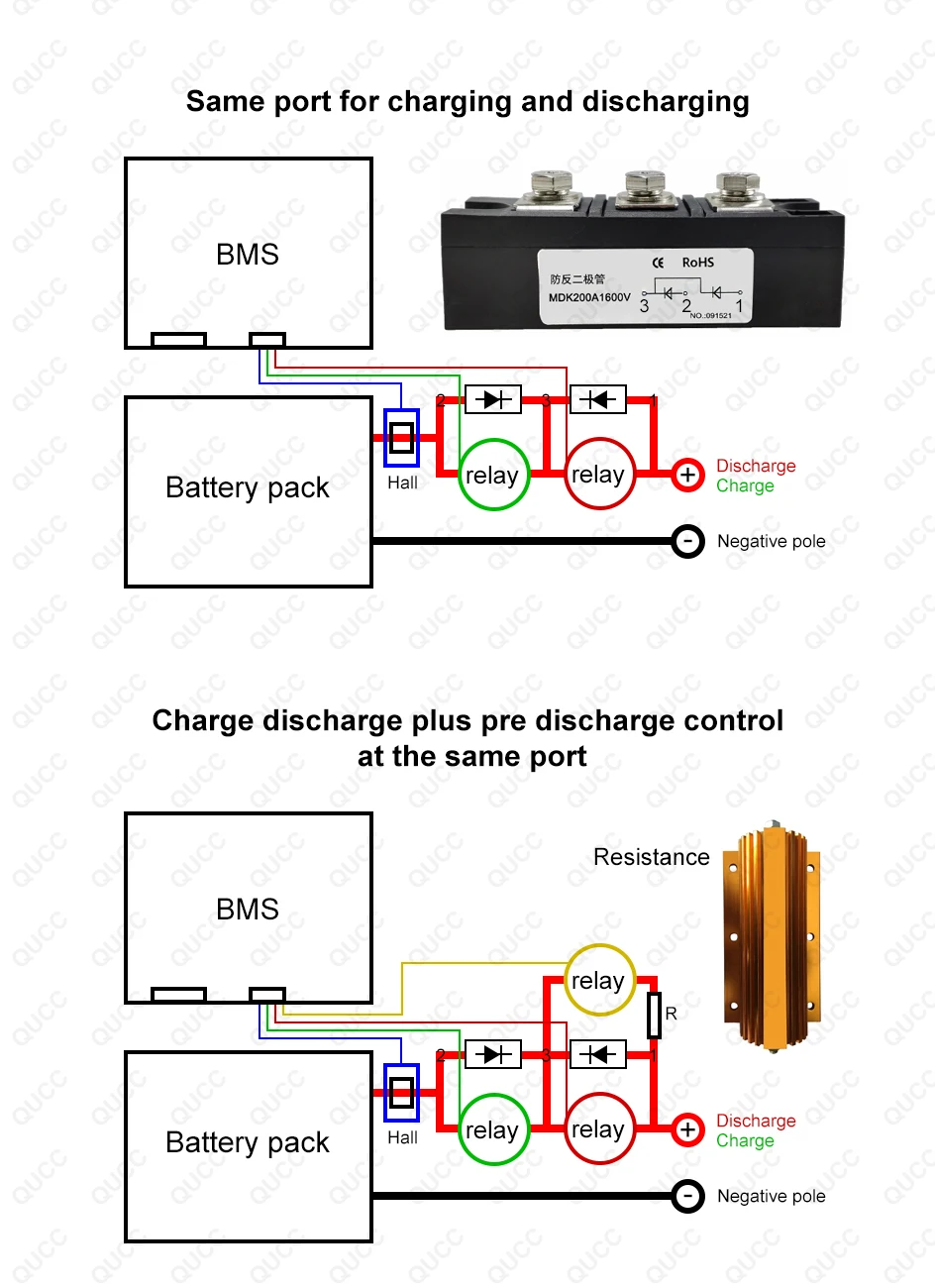

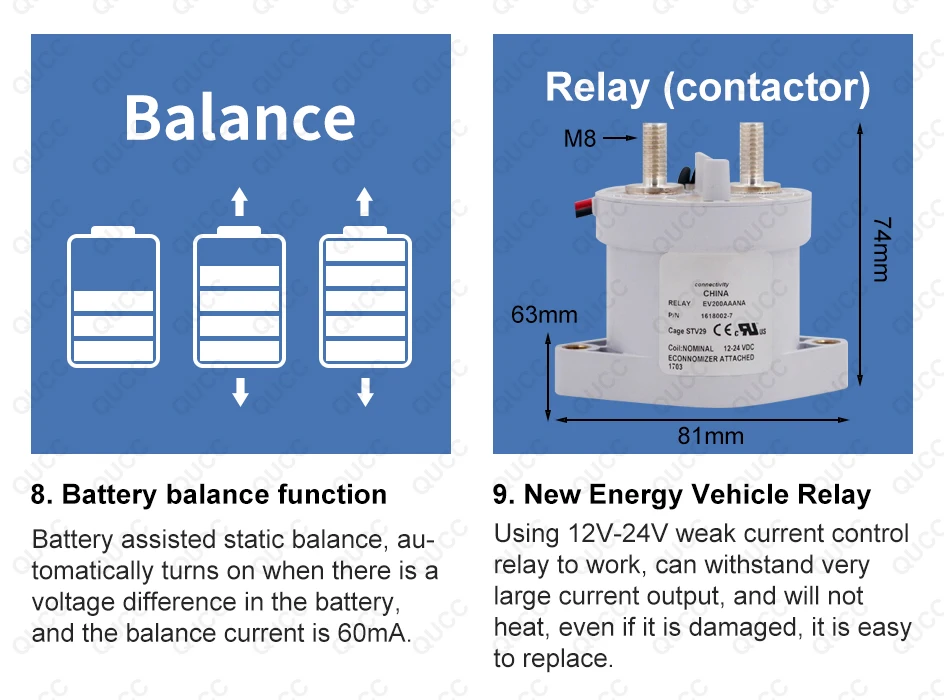

*Use the relay main circuit switch. Working power consumption of 12V power relay is 250mA.

*BMS only provides 12V voltage to control relay operation.

*Advantages: Relay has 500A continuous current output, maximum peak value is 2000A and not easy to be damaged by heat. If the relay is damaged you can replace it, and the main controller will not be affected.

*Due to high voltage, we recommend that you add a precharge circuit to charge device capacitor.

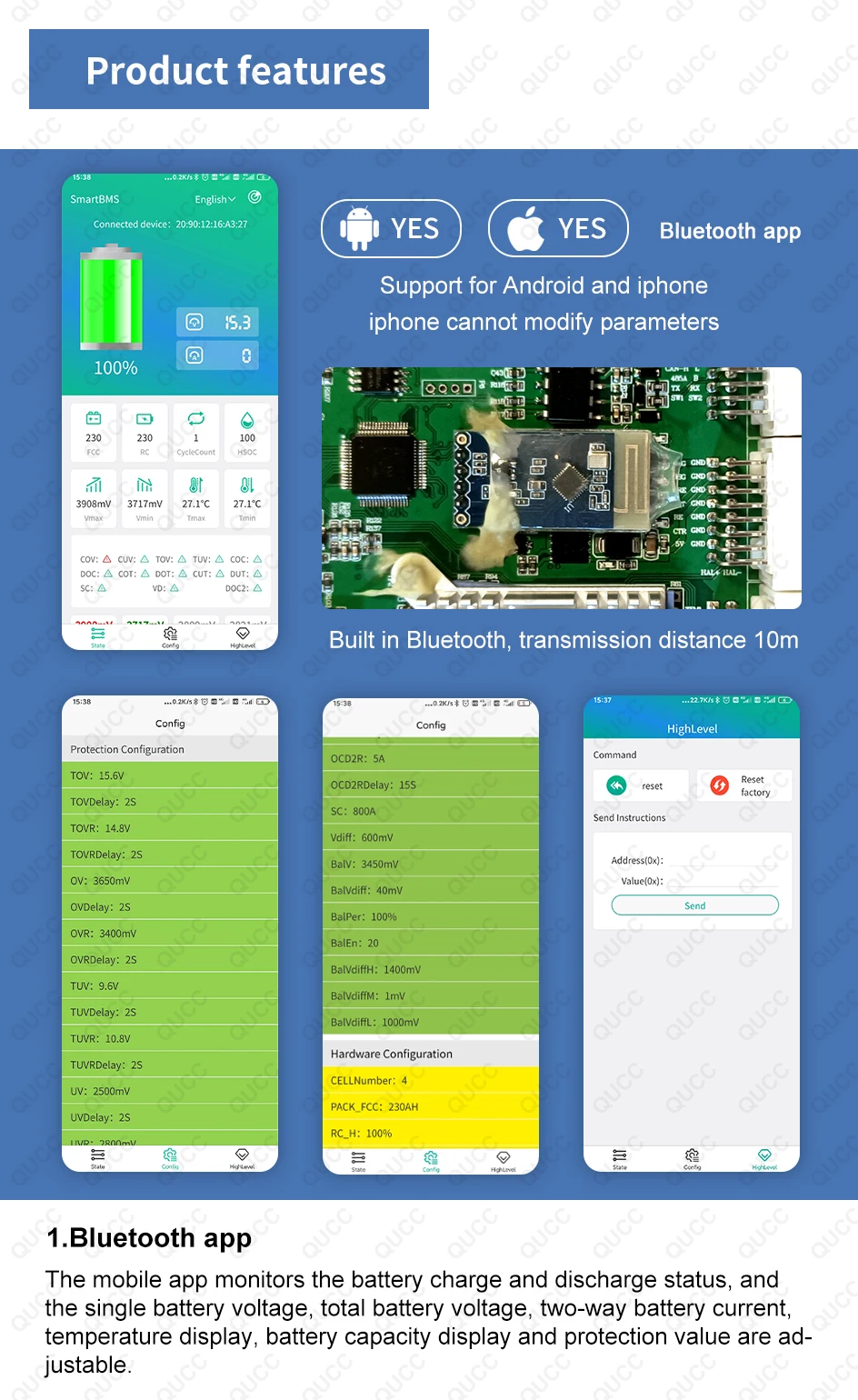

1. BMS has a built-in Bluetooth module. It can be used to view battery parameters on cell phone (compatible with Android and IOS).

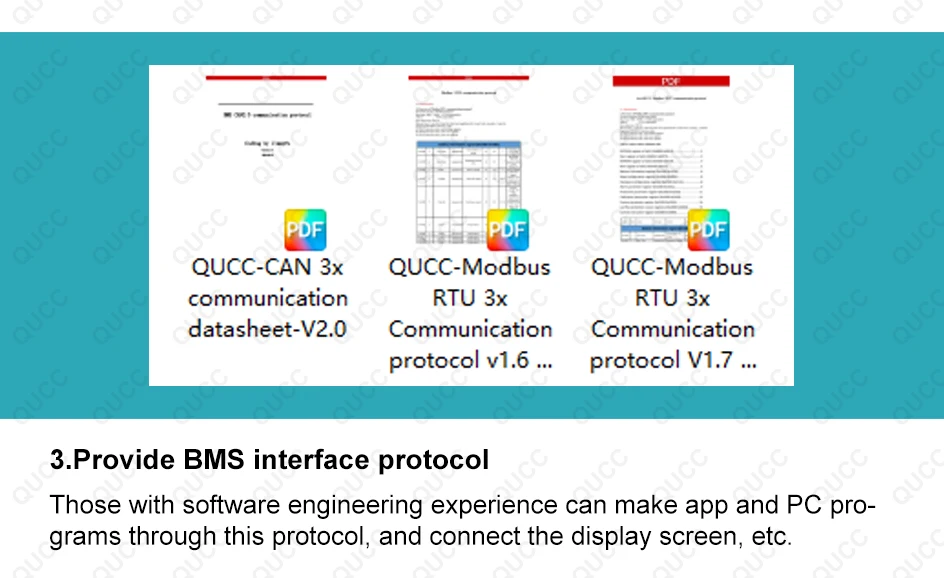

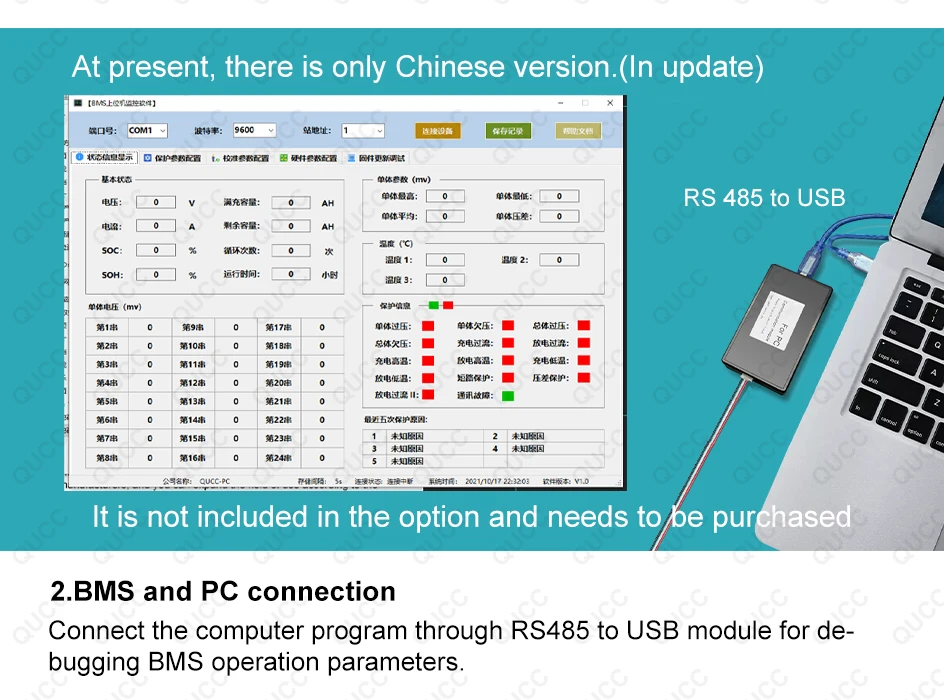

2. you can develop supporting products according to your own needs. We can provide BMS interface communication protocol.

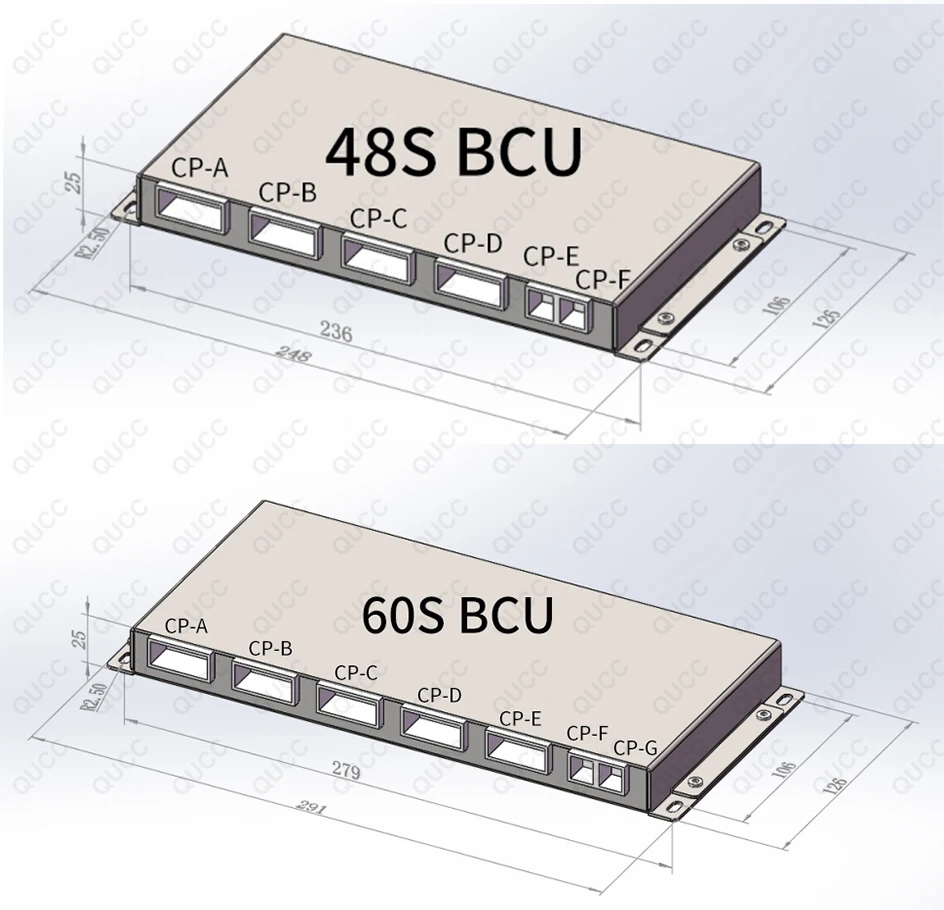

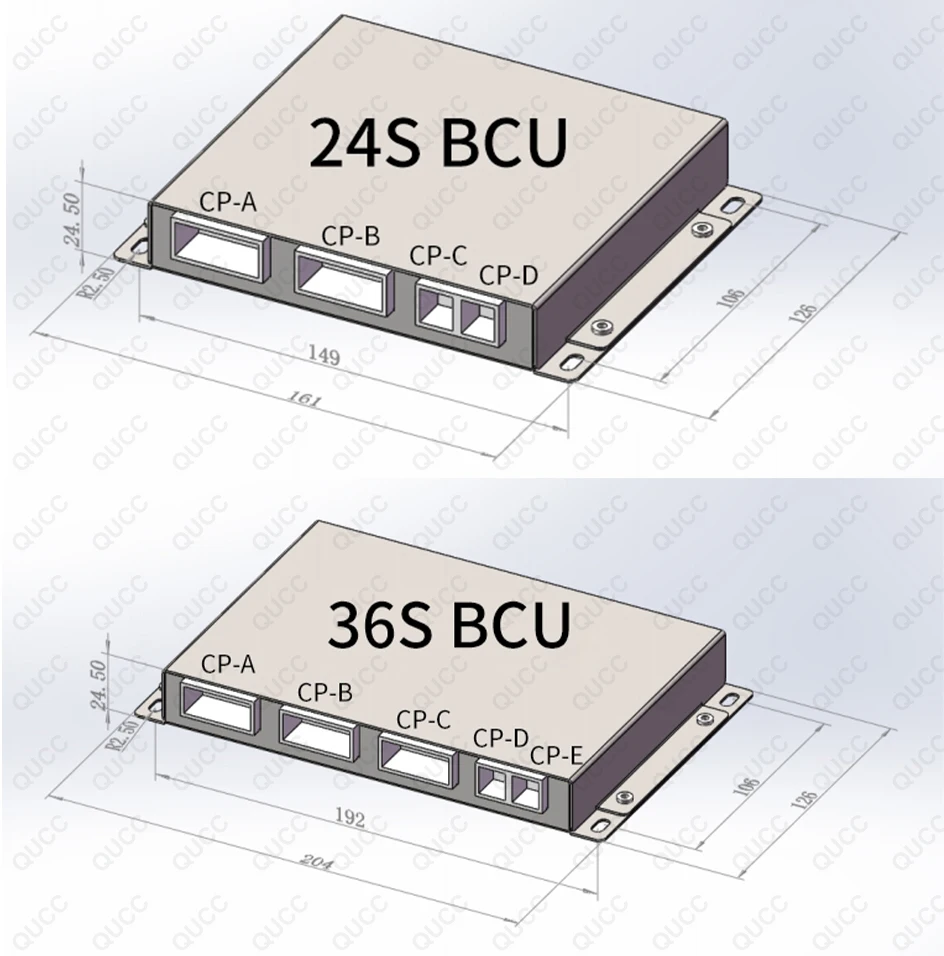

3. select the corresponding BCU acquisition module according to the series connection of battery modules, and the maximum support is 240S.

4. If you have experience please contact us before purchase to confirm whether the order is correct.

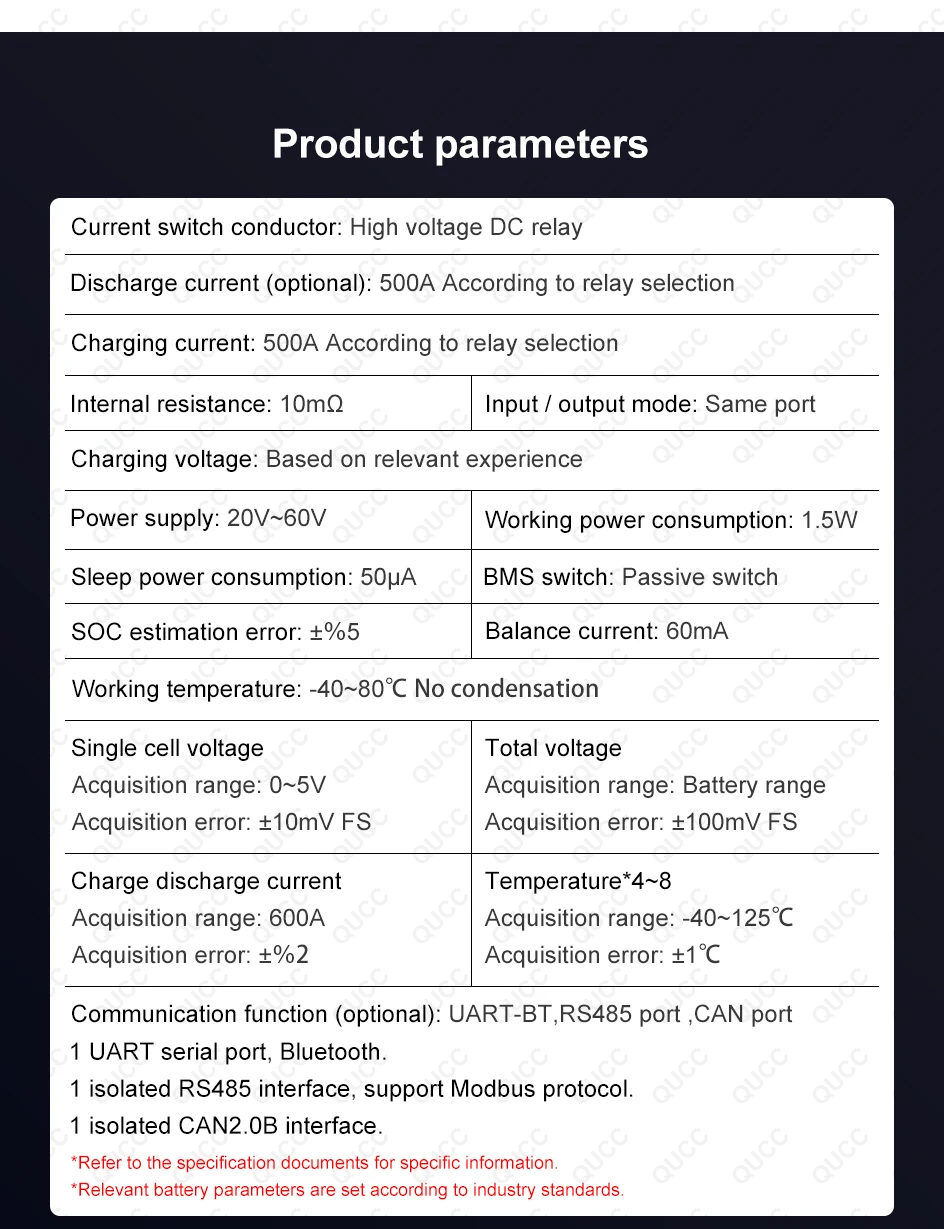

1 UART serial port for Bluetooth.

1 isolated RS485 interface and supporting Modbus protocol.

1 isolated CAN2.0B interface.
