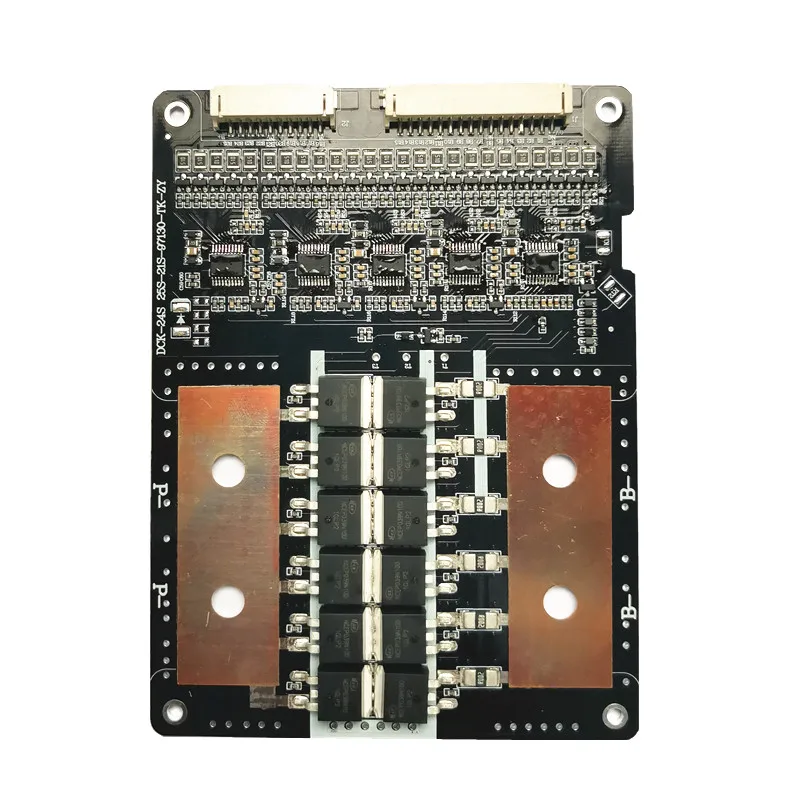

Quanlity Heltec BMS 12S 13S 14S 15S 16S 17S 200A lifepo4 BMS lipo bms battery protection board

Quanlity Heltec BMS 12S 13S 14S 15S 16S 17S 200A lifepo4 BMS lipo bms battery protection board

$97.00

12-17S 200A 3.2V Same Port Charging protection voltage: 3.65VDischarge protection voltage: 2.5VCharge release voltage: 3.5VDischarge release voltage: 2.8VBalanced voltage 3.45VBalance current: 71MALong-term continuous overcurrent value: 200AInstantaneous current limit value: 1100ACharging low temperature protection: 0℃Charging high temperature protection: 50℃Discharge high temperature protection: 70℃Short circuit protection: load short circuitDimensions: 190×97×14MMWeight: 260g 12-17S...

Current

12-17S 200A 3.2V Same Port

Charging protection voltage: 3.65V

Discharge protection voltage: 2.5V

Charge release voltage: 3.5V

Discharge release voltage: 2.8V

Balanced voltage 3.45V

Balance current: 71MA

Long-term continuous overcurrent value: 200A

Instantaneous current limit value: 1100A

Charging low temperature protection: 0℃

Charging high temperature protection: 50℃

Discharge high temperature protection: 70℃

Short circuit protection: load short circuit

Dimensions: 190×97×14MM

Weight: 260g

12-17S 200A 3.7V Same Port

Charging protection voltage: 4.25V

Discharge protection voltage: 2.7V

Charge release voltage: 4.15V

Discharge release voltage: 3.0V

Balance voltage 4.18V

Balance current: 83MA

Long-term continuous overcurrent value: 200A

Instantaneous current limit value: 1100A

Charging low temperature protection: 0℃

Charging high temperature protection: 50℃

Discharge high temperature protection: 70℃

Short circuit protection: load short circuit

Dimensions: 190×97×14MM

Weight: 260g
