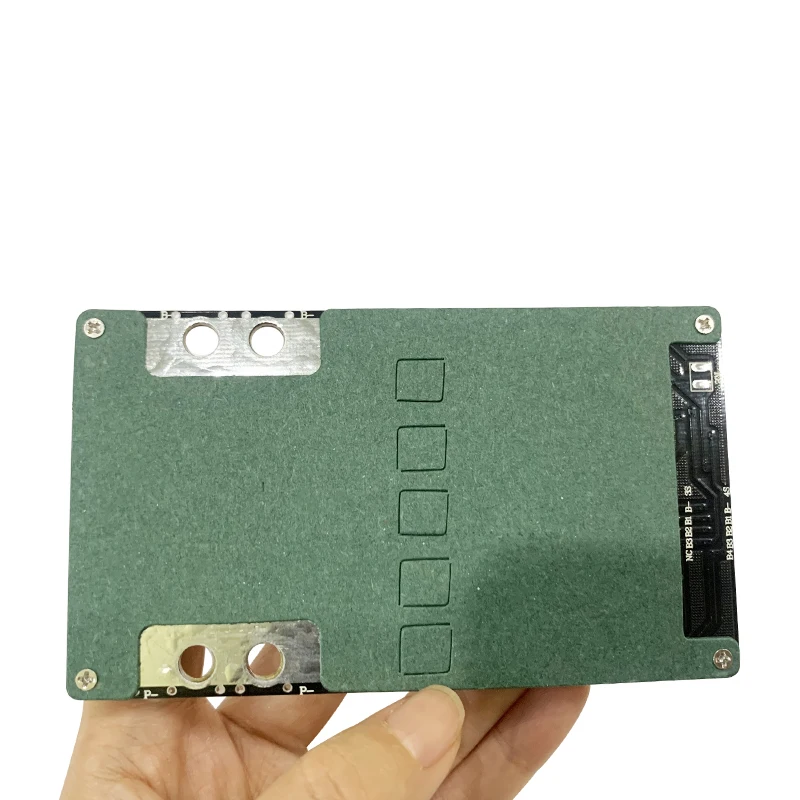

3S 4S 120A 3.7V

Charging protection voltage: 4.25V

Charge release voltage: 4.19V

Balanced opening voltage 4.17V

Discharge protection voltage: 2.8V

Discharge release voltage: 3.0V

Balance current: 105 mA

Continuous discharge current: 120A

Continuous charging current: 60A

Current limit protection: 450A

Short circuit protection: load short circuit protection

Specification size: 115×66×8 mm

It is suitable for motors within 1000W, often used in trawlers, marine propellers, and low-power energy storage within 1200W.

Starting from September 2020, the new specifications will be officially produced to replace the old 120A

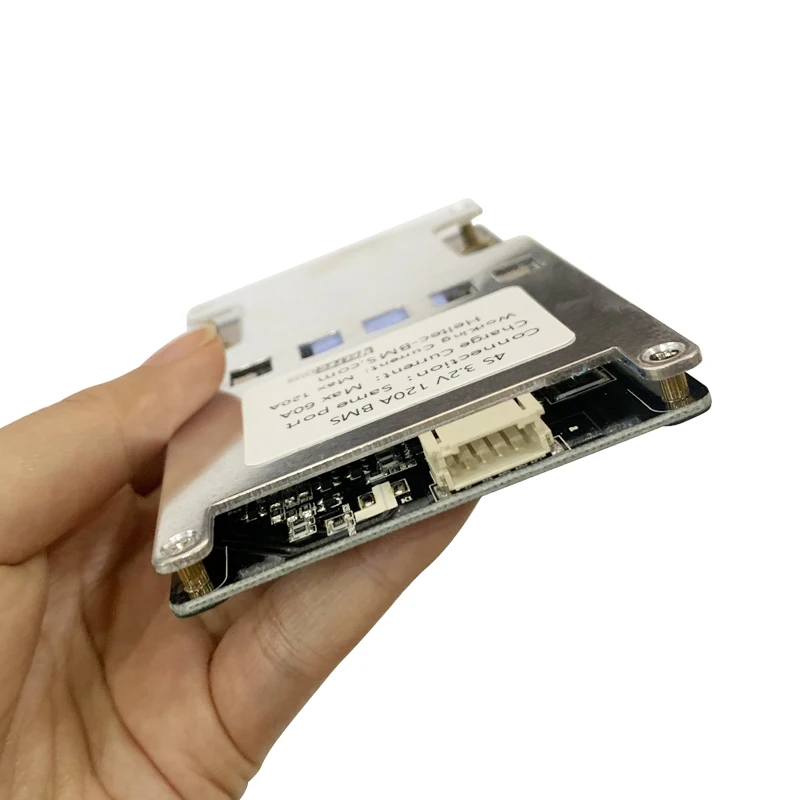

4S 120A 3.2V

Charging protection voltage: 3.75V

Charge release voltage: 3.6V

Balanced opening voltage 3.55V

Discharge protection voltage: 2.1V

Discharge release voltage: 2.5V

Balance current: 95 mA

Continuous discharge current: 90A

Continuous charging current: 90A

Current limit protection: 330A

Short circuit protection: load short circuit protection

Specification size: 115×66×8 mm

It is suitable for motors within 1000W, often used in trawlers, marine propellers, and low-power energy storage within 1200W.

Starting from September 2020, the new specifications will be officially produced to replace the old 120A
