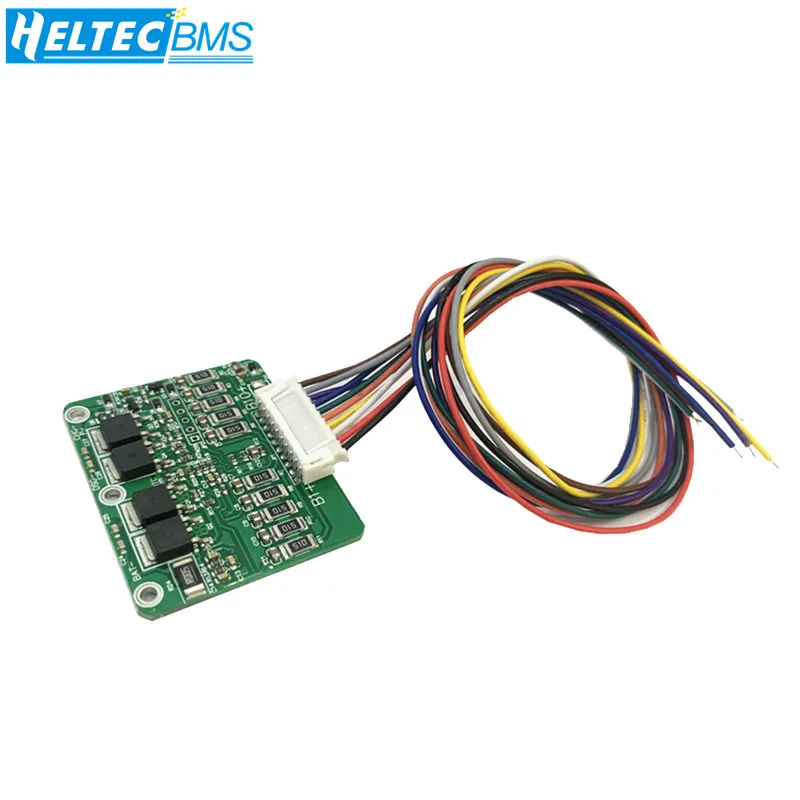

LTO BMS 4S 15A 2.4V Lithium Titanate Lithium Battery Protection Board balanced BMS

$18.69

Product Specifications Note: This board can do any kind of 4 to 10 strings. Please take a message when you take a picture. We have good configuration parameters to achieve the number of strings you want.Configurable parameters: overcharge point 2.8V-4.375V range configurable, one step per 25mV;Over-distribution 1.4V-2.900V range is configurable,...

Product Specifications

Note:


This board can do any kind of 4 to 10 strings. Please take a message when you take a picture. We have good configuration parameters to achieve the number of strings you want.

Configurable parameters: overcharge point 2.8V-4.375V range configurable, one step per 25mV;

Over-distribution 1.4V-2.900V range is configurable, one step per 100mV;

When photographed, the above configuration parameters are defaulted. Of course, you can also leave a message for your own parameters. We will configure it for you, but it must be a parameter within the configurable range.

The following are the factory default configuration parameters:

A: 3.7V lithium cobalt oxide battery group: overcharged 4.25V, over-discharged 2.50V

B: 3.7V ternary lithium battery group: overcharge 4.20V, over-discharge 2.80V

C: 3.2V iron phosphate battery group: overcharged 3.65V, over-discharged 2.50V

D: 3.8V high voltage lithium battery pack: overcharge 4.45V, over discharge 3.00V

E: 2.4V lithium titanate battery group: overcharge 2.80V, over-discharge 1.80V
