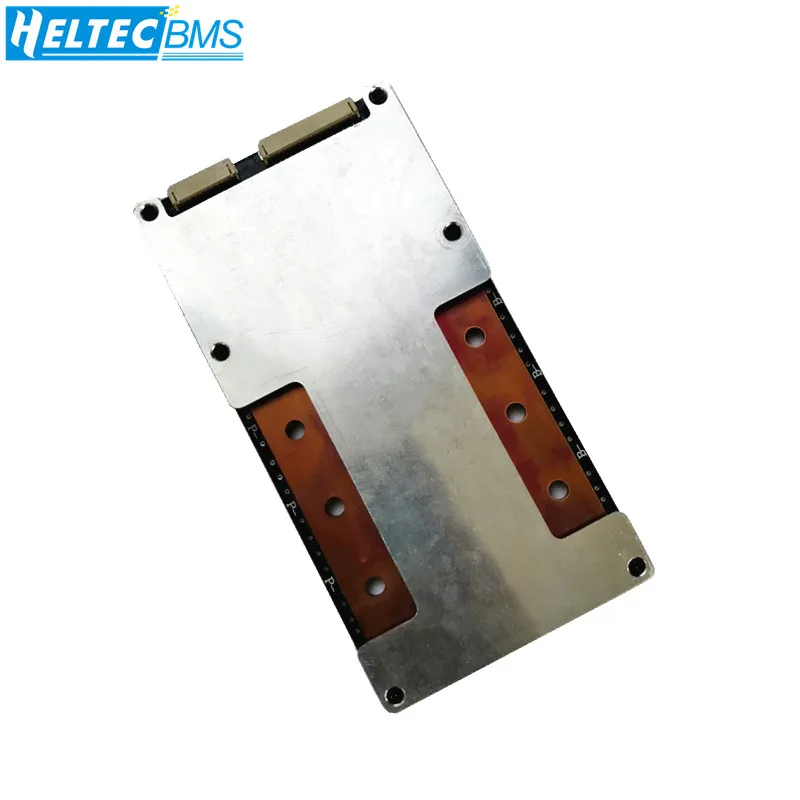

Heltec New 12S-17S continuous 300A BMS 13S 14S 15S 16S Peak 1100A 72V 48V Lipo/Lifepo4 battery protection board

Heltec New 12S-17S continuous 300A BMS 13S 14S 15S 16S Peak 1100A 72V 48V Lipo/Lifepo4 battery protection board

$135.00

12-17S 300A 3.2V Same Port Charging protection voltage: 3.65VDischarge protection voltage: 2.5VCharge release voltage: 3.5VDischarge release voltage: 2.8VBalanced voltage 3.45VBalance current: 71MALong-term continuous overcurrent value: 250-28A10min. continuous overcurrent :300AInstantaneous current limit value: 1100ACharging low temperature protection: 0℃Charging high temperature protection: 50℃Discharge high temperature protection: 70℃Short circuit protection: load short circuitDimensions:...

Current

12-17S 300A 3.2V Same Port

Charging protection voltage: 3.65V

Discharge protection voltage: 2.5V

Charge release voltage: 3.5V

Discharge release voltage: 2.8V

Balanced voltage 3.45V

Balance current: 71MA

Long-term continuous overcurrent value: 250-28A

10min. continuous overcurrent :300A

Instantaneous current limit value: 1100A

Charging low temperature protection: 0℃

Charging high temperature protection: 50℃

Discharge high temperature protection: 70℃

Short circuit protection: load short circuit

Dimensions: 190×97×14MM

Weight: 275g

12-17S 300A 3.7V Same Port

Charging protection voltage: 4.25V

Discharge protection voltage: 2.7V

Charge release voltage: 4.15V

Discharge release voltage: 3.0V

Balanced voltage 4.18V

Balance current: 83MA

Long-term continuous overcurrent value: 250-28A

10min. continuous overcurrent :300A

Instantaneous current limit value: 1100A

Charging low temperature protection: 0℃

Charging high temperature protection: 50℃

Discharge high temperature protection: 70℃

Short circuit protection: load short circuit

Dimensions: 190×97×14MM

Weight: 275g
