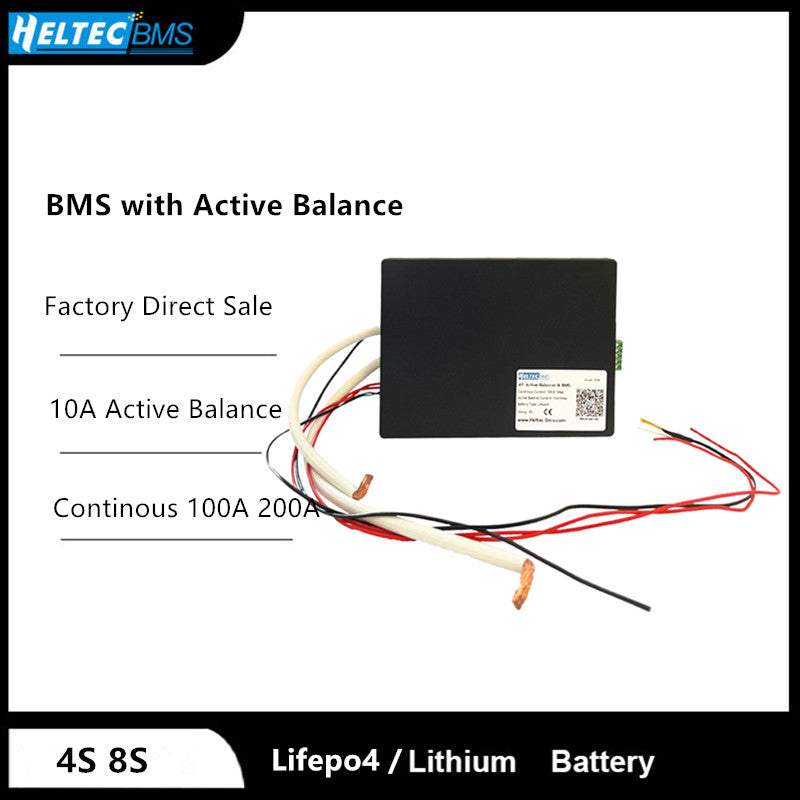

Heltec 4S 8S 100A 200A BMS with 10A Acive Balancer board for li-ion/Lifepo4 battery 12V 24V bms battery pack

Heltec 4S 8S 100A 200A BMS with 10A Acive Balancer board for li-ion/Lifepo4 battery 12V 24V bms battery pack

$55.89

4S 8S 100A 200A 3.2V Same Port with active balancer Undervoltage protection: 2.1V Recovery output: 2.3V Passive balance on: 3.45V Passive balance stop: 3.45V Overcharge protection: 3.75V Return charging: 3.6V Continuous discharge current: 100A/200A (maximum) Active balancing current: 10A (maximum) 4S 8S 100A 200A 3.7V Same Port with active balancer...

尺寸

4S 8S 100A 200A 3.2V Same Port with active balancer

Undervoltage protection: 2.1V
Recovery output: 2.3V
Passive balance on: 3.45V
Passive balance stop: 3.45V
Overcharge protection: 3.75V
Return charging: 3.6V
Continuous discharge current: 100A/200A (maximum)
Active balancing current: 10A (maximum)

4S 8S 100A 200A 3.7V Same Port with active balancer

Undervoltage protection: 2.8V
Recovery output: 3.0V
Passive balance on: 4.19V
Passive balance stop: 4.19V
Overcharge protection: 4.25V
Return charging: 4.19V
Continuous discharge current: 100A /200A (maximum)
Active balancing current: 10A (maximum)
