36V BMS 10S 30A 40A 60A Balance Li-ion battery protection board for 600W 1200W ebike/electronic tools

36V BMS 10S 30A 40A 60A Balance Li-ion battery protection board for 600W 1200W ebike/electronic tools

$19.50

10S 30A 3.7V Same Port Size: 63×48×8MMOvercharge protection : 4.28vOver-discharge protection : 2.8vAbnormal high voltage protectionTemperature protection optionalMaximum continuous current : 30ADischarge over current protection : 100ALoad short circuit protectionBalance current : 83 mACharging recoveryApplication：Applicable to 36V Electric bicycle and electric tools within 600W 10S 60A 3.7V Same Port Size:...

Current

10S 30A 3.7V Same Port

Size: 63×48×8MM

Overcharge protection : 4.28v

Over-discharge protection : 2.8v

Abnormal high voltage protection

Temperature protection optional

Maximum continuous current : 30A

Discharge over current protection : 100A

Load short circuit protection

Balance current : 83 mA

Charging recovery


Application：

Applicable to 36V Electric bicycle and electric tools within 600W

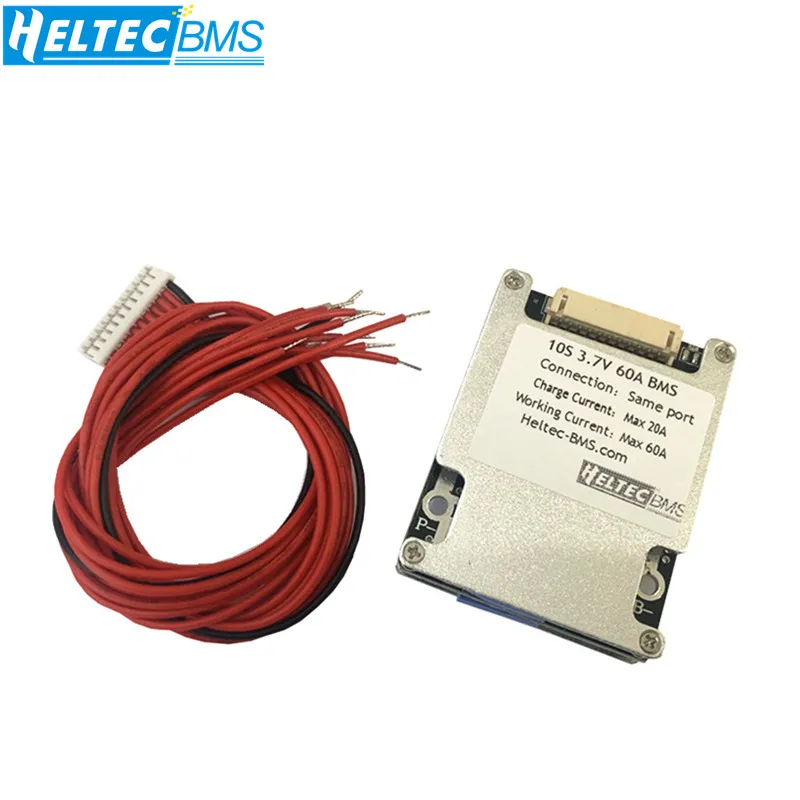

10S 60A 3.7V Same Port

Size: 63×48×14MM

Overcharge protection : 4.28v

Over-discharge protection : 2.8v

Abnormal high voltage protection

Temperature protection optional

Maximum continuous current : 60A

Discharge over current protection : 200A

Load short circuit protection

Balance current : 83 mA

Charging recovery


Application：

Applicable to 36V Electric bicycle and electric tools within 1200W

10S

10S 40A 3.7V Split Port



Size：78×60×17mm

Overcharge protection : 4.28v

Over-discharge protection : 2.9v

Abnormal high voltage protection

Temperature protection optional

Maximum continuous current : 40A

Discharge over current protection : 225A

Load short circuit protection

Balance current : 56 mA

Charging recovery


Application：

Applicable to 36V Electric bicycle and electric tools within 1200W

10S 60A 3.7V Split Port

Size：78×60×17mm

Overcharge protection : 4.28v

Over-discharge protection : 2.9v

Abnormal high voltage protection

Temperature protection optional

Maximum continuous current : 60A

Discharge over current protection : 225A

Load short circuit protection

Balance current : 56 mA

Charging recovery


Application：

Applicable to 36V Electric bicycle and electric tools within 1200W
