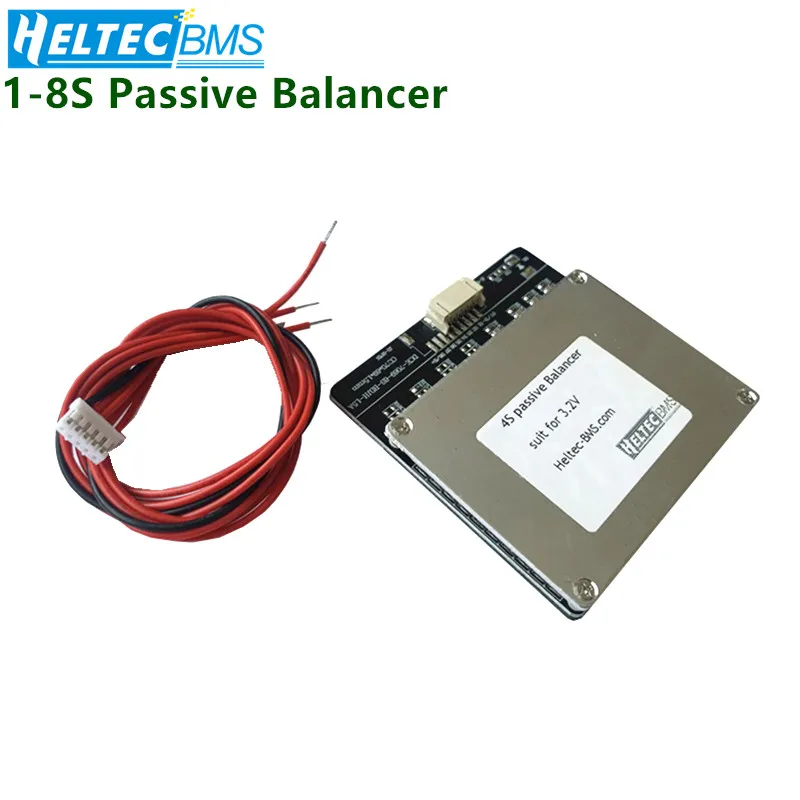

Universal 1S 2S 3S 4S 5S 6S 7S 8S 500mA/530mA External balanced Board 18650 Lithium Battery Module passive balancer board

$4.69

Brand: Heltec BMS

Availability: In Stock

1-4 series passive equalization board (3.2V lithium iron phosphate) Model specification DCK-7069-8S-BDJH-1.5ABalanced cut-off voltage 3.55VBalance current: 500mAMaximum balanced current turn-on voltage: 3.6VCharge recovery voltage of matching protection IC: 3.6V 1-4 series passive equalization board (3.7V lithium battery) Model specification DCK-7069-8S-BDJH-1.5ABalanced cut-off voltage 4.17VBalanced current: 530mAMaximum balanced current turn-on voltage: 4.2VCharge...

1-4S 3.2V

1-4S 3.7V

1-8S 3.2V

1-8S 3.7V

Qty:

Description
Reviews

1-4 series passive equalization board (3.2V lithium iron phosphate)

Model specification DCK-7069-8S-BDJH-1.5A

Balanced cut-off voltage 3.55V

Balance current: 500mA

Maximum balanced current turn-on voltage: 3.6V

Charge recovery voltage of matching protection IC: 3.6V

1-4 series passive equalization board (3.7V lithium battery)

Model specification DCK-7069-8S-BDJH-1.5A

Balanced cut-off voltage 4.17V

Balanced current: 530mA

Maximum balanced current turn-on voltage: 4.2V

Charge recovery voltage of matching protection IC: 4.18V

1-8 series passive equalization board (3.2V lithium iron phosphate)

1-8 series passive equalization board (3.7V lithium battery)
