Summary

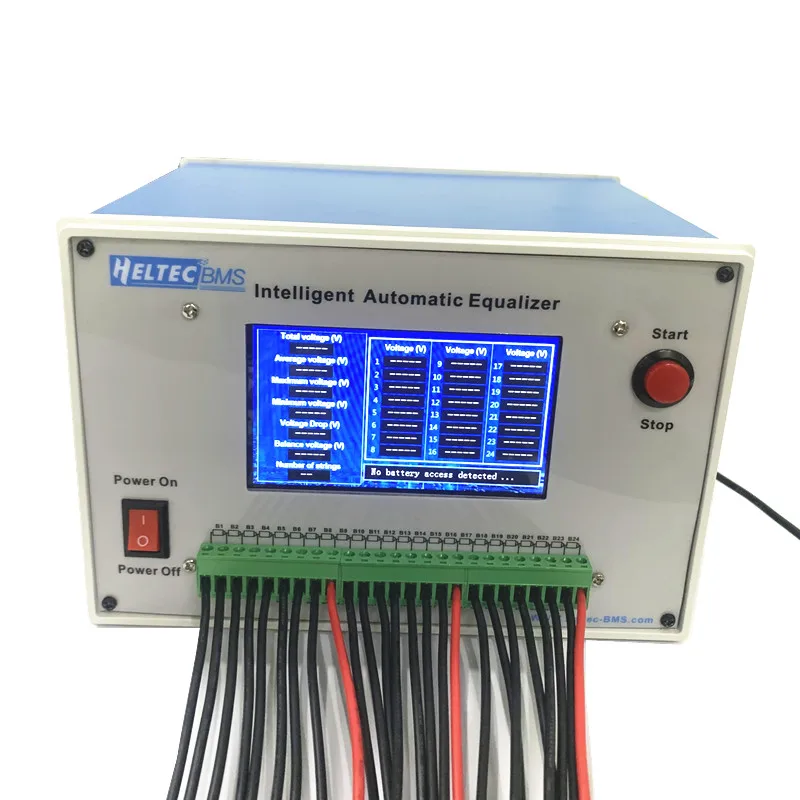

This equalizer directly displays the sum and voltage difference of each string

Solves the problem of battery pack unbalance with one button

The equalizer starts the equalization with one button, and automatically stops after the equalization is completed, and warns

Our equalizer will not charge the batteries during the equalization process. So don't worry about the danger of overcharging the balance

Note:

Before balancing, please check whether the lowest voltage is lower than the battery's over-discharge voltage. If it is lower than the battery's over-discharge voltage, please charge the balance first, and the battery is fully charged and then balance, the effect will be better.

Feture

Support 2~24 series lithium battery pack, support ternary lithium, lithium iron phosphate, too cobalt lithium, support 1.5V~4.5V battery, the voltage is out of range, it will sound a warning and display

Reverse connection warning and reminder: after connection reverse, overvoltage (greater than 4.5V), low voltage (less than 1.5V) protection functions are balanced, it will automatically stop, and a warning sound will sound to indicate that the balance is complete.

Constant resistance 1 ohm discharge equalization

Large equalization current;

Ternary lithium 4A Max

Lifepo4 3A MAx

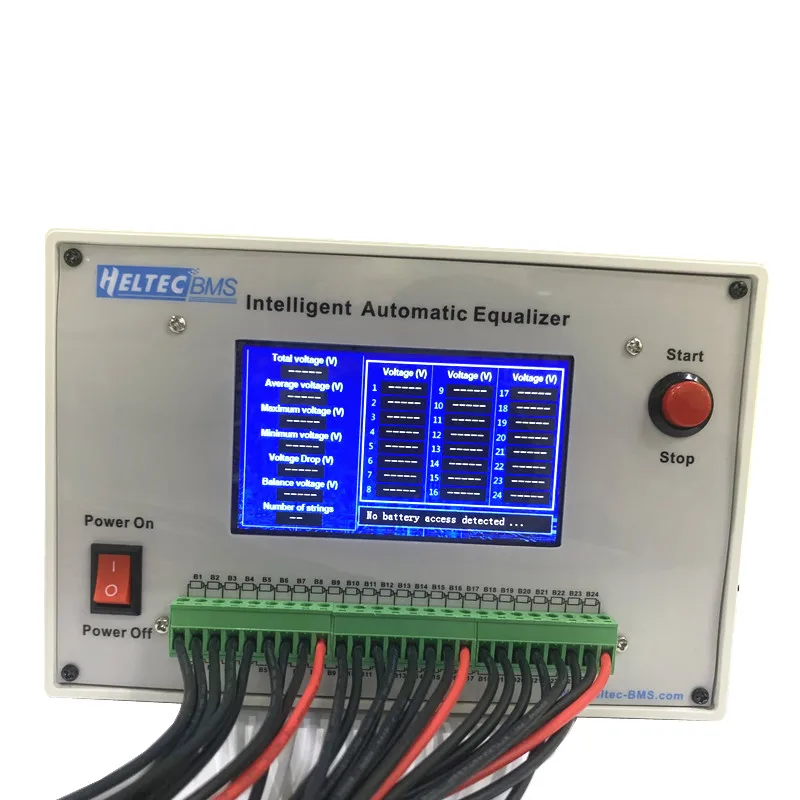

Display the voltage of each string, total voltage, highest string voltage, lowest string voltage, maximum voltage difference of battery pack, average voltage, balanced voltage, number of battery strings

Battery maintenance steps:

There is a bad battery cell:

1)replace the battery cell

2)fully charged

3)balancing

4)fully charged

5)battery maintenance completed

There is a bad battery cell:

1)replace the battery cell

2)fully charged

3)balancing

4)fully charged

5)battery maintenance completed
